Product Details
Warmup 6iE WiFi Thermostat

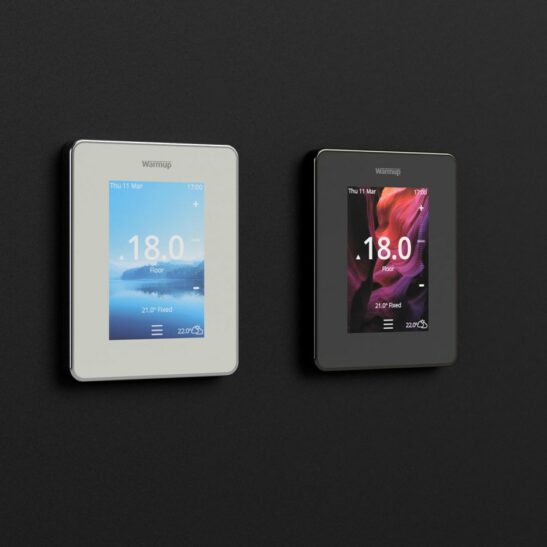

The latest in Warmup’s thermostats, the 6ie allows effortless control with smartphone touchscreen technology. Available in two colours (black and white), both provided with an ultrathin design (16mm from the wall). The thermostat works well in many surroundings and with the ability to change the background image it allows for more personalisation.
Set up is done in a matter of seconds, simply scan the QR code which will appear on the 6iE using the MyHeating app and it will automatically connect to the Wi-Fi network.
The 6iE works with all of the energy saving features in the MyHeating app such as SmartGeo. SmartGeo is a unique technology and built into the MyHeating app that uses an advanced algorithm to understand the most efficient heating settings for each home.
Working automatically, it learns routines and location through background communication with a smartphone. It lowers temperatures when away, only rising them up to the ideal comfort temperature in time for the arrival at home, saving energy and money.
Technical Specifications
| Operating voltage | 230 V AC ±15%, 50 Hz |
| Maximum load | 16 A (~3680 W) |
| Max. ambient temperature | 40 ºC |
| Dimensions | 115 x 90 x 16mm |
| Screen size | 3,5 in |
| Sensors | air and floor |
| Floor sensor type | NTC10k (3 m long) |
| Installation depth | 50 mm back box recommended (35 mm minimum) |
| IP rating | IP33 |
| Er-P class | IV |
| Certificates and marks | BEAB and CE marked |
| Warranty | 12 years when installed together with a Warmup heating system (3 years with other systems) |
Compatibility
| The 6iE requires 230 V AC power at all times |
| Compatible with electric and hydronic floor heating systems |
| Compatible with Combi and System boilers with Switch Live (230 V AC) input |
| For lower voltage, or volt-free systems, a contactor must be used |
Installation Manual and Technical Specification Document
| Product Code | 020_6ie-Thermostat |
|---|---|
| Categorised In | Underfloor Heating, Warmup Thermostats, Warmup Underfloor Heating |
| Warmup Underfloor Heating | Warmup Thermostats |
| Colour | Bright Porcelain, Onyx Black |
