Due to the specific nature of this product please note price is calculated on an individual basis, please contact a member of our team with the following information at hand:
- Total floor area
- Unheated floor area (under kitchen islands etc)
- Room Width
- Floor Construction Material
System variations and detail slightly more complicated than electric and will require detailed conversations with prospective customers including in a lot of cases a site survey prior to working on a detailed design and pipe layout, as gold plated warmup ambassadors we have a close working relationship with warmup technical staff and can arrange all the assistance to ensure the perfect system to suit your requirements.
Nexxa 12 System

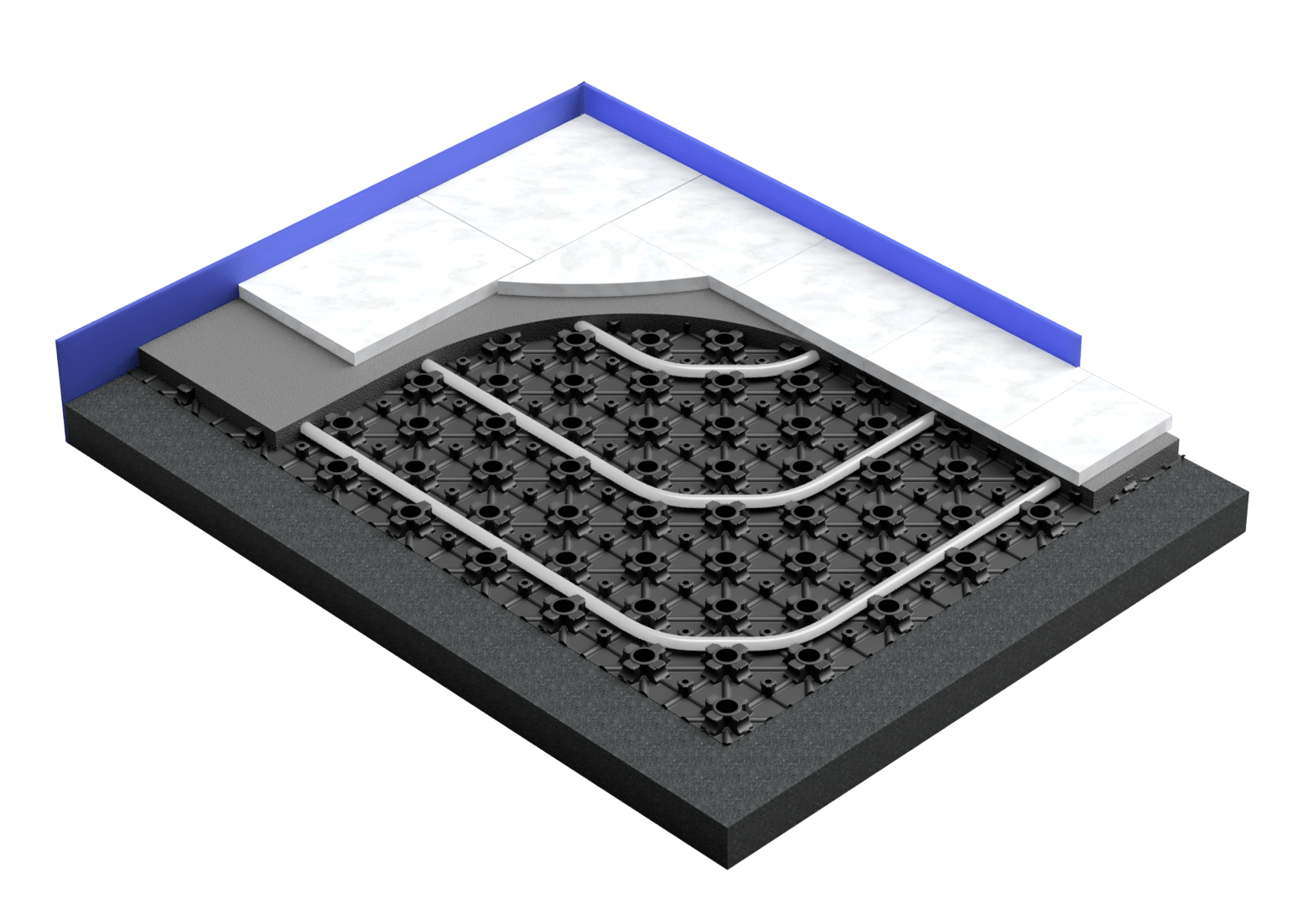

Nexxa 12 is a low profile castellated underfloor heating system, designed for refurbishment projects where low floor buildup is required. The system incorporates a 12mm PERT pipe within a plastic castellated panel, which is then covered with a 22mm layer of appropriate levelling compound. Nexxa 12 bonds directly to a smoothed and primed subfloor.
With fast response times and excellent heat output (70W/m2 for timber floors at 40°C water temperature), Nexxa 12 is a great way to bring the warmth and luxury of underfloor heating to your project.
The Nexxa 12 panels are self-adhesive, making them quick to lay with no waiting around for drying time. Once laid, the 12mm pipe can be simply clipped into place to cover the required heated area, in either square patterns or diagonals, to suit the space.
The panels are easy to cut with a utility knife and measure 650 x 1050mm. Once the pipe is installed, an appropriate levelling compound can be poured to a thickness of 22mm. Insulation should be installed underneath the Nexxa 12 panels to ensure rapid heat up times and reduce energy usage.
